BCM-1300

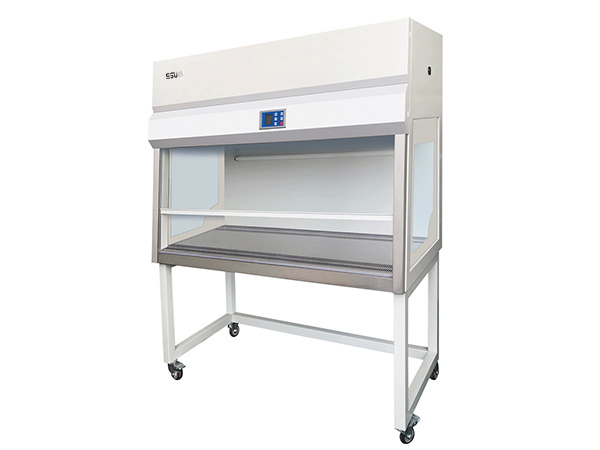

Product Name: biological super clean workbench
Product model: BCM-1300 (biological negative pressure type)
Product standard: in accordance with JG / T 292-2010 super clean workbench standard

Product description

    Product features:

◆  The control system of the negative pressure type net working table was independently developed and obtained the copyright

     registration certificate of computer software from the State Copyright Administration of the people's Republic of China.

◆  The outer box body adopts cold-rolled steel plate spraying technology, with fine appearance spraying, which can effectively inhibit

     the growth of bacteria on the surface of the cabinet body.

◆  The aluminum frame high efficiency filter without partition is adopted, and the filtration efficiency is 99.995% (≥ 0.3 μ m particles). The

     filter membrane material is borosilicate glass fiber without partition.

◆  The control system adopts intelligent LCD large screen display, electronic stepless voltage regulation and speed regulation, which is

     more convenient to use. The LCD screen can display the system parameters such as working area temperature, downdraft, filter service

     life, etc., adjust the parameter settings by touching the key, and the blue display screen will display the parameters.

◆  Adopting high-quality centrifugal fan with low noise and power consumption, the fan is equipped with voltage fluctuation

     compensation function, which can ensure the stability and continuity of the falling wind speed, has resistance induction compensation

     function, and effectively extends the service life of ultra-high efficiency filter.

◆  Equipped with filter failure, damage and blocking alarm technology, equipped with fan overload alarm prompt to remind the user to

     replace the filter in time.

◆  The worktop is made of integrated high quality stainless steel, corrosion-resistant and easy to clean.

◆  Temperature sensor: it can detect and display the temperature in real time. Wind speed sensor: it can real-time detect and display the

     downdraft velocity, monitor the fan operation and the safety status of the operation area.

◆  The front 10 ° inclined operation surface is more ergonomic and comfortable to operate.

◆  Quasi closed mesa with stepped design at the front. When the front window is completely closed, it can effectively prevent external

     gas from entering.

◆  Thickness of front window glass ≥ 6mm.

◆  Interlock protection design, UV lamp and lighting lamp interlock, to prevent UV lamp misoperation of human harm, more to protect

     the safety of personnel.

◆  The glass door of the suspension type lifting system is easy to operate and flexible, and has no section type balance method code. The

     sliding door can be lifted and lowered freely and can stay at any position.

◆  Double side perspective window design, better lighting effect, wider field of vision.

◆  The high efficiency filter is designed with negative pressure around the four rings and positive pressure around the operation area,

     so as to form a sterile and clean working environment.

◆  Reasonable structure design, maintenance and replacement of high efficiency filter and fan can be carried out at the back of the clean

     table, which is more convenient and quick.


    Model and technical parameters:



    Index / model

    BCM-1300

    Cleanliness grade

    ISO 5 (Class 100)

    Settling bacteria concentration

    ≤ 0.5 / dish / hour (Φ 90mm culture plate)

    Mean wind speed

    0.2m~0.5m/s

    Descent wind speed

    0.3m~0.5m/s

    Noise

    ≤65dB(A)

    Vibration half peak

    ≤5μm(x.y.z)

    illumination

    ≥300LX

    Power Supply

    AC single phase 220V / 50Hz

    Maximum power consumption

    500W

    Weight

    120Kg

    Workspace size

    1160×600×580mm

    Overall dimension of device

    1300×720×1750mm

    Specification and quantity of high efficiency filter

    1160×470×50×①

    Specification and quantity of fluorescent lamp / UV lamp

    40W×①/40W×①
