◆ It is widely used in medical and health, pharmaceutical preparations, biopharmaceutical, plant tissue culture, animal husbandry and
veterinary, food and beverage, chemical experiment, purification engineering and other fields and laboratories, providing a clean
working platform for sterile and dust-free clean environment.
◆ The box and table are all stainless steel structure, with delicate appearance and strong corrosion resistance as a whole.
◆ Single side vertical quasi closed table, effectively prevent the external gas from entering and the peculiar smell in the operation area
from damaging the human body;
◆ Adopt adjustable air volume fan system, touch type switch and multi gear to adjust the voltage, so as to ensure that the wind speed in
the working area is always in an ideal state;
◆ Sliding door: double suspension glass door, open up and down, easy and flexible operation, rubber damping pad is embedded at the
bottom of the sliding door to reduce the impact when opening and closing, endless balance method code, free up and down when
sliding the door, can stay at any position;
◆ Transmission: the double suspension glass door is driven synchronously through guide rail, counterweight pulley block, steel cable,
counterweight, etc., which is flexible and convenient to open up and down, with low noise;
◆ The front cover can be opened directly to facilitate the replacement of filters, electronic components and accessories.
Model and technical parameters:

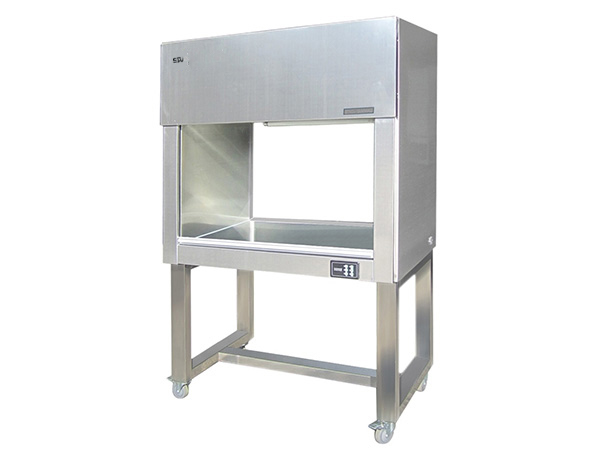

Index / model | SJ-CJ-1FDQ Single side (vertical flow) clean working table all stainless steel type |
Cleanliness grade | Grade 100 @ ≥ 0.5 μ m (209E, US Federal) |
cfu | ≤ 0.5 / dish / hour (φ 90mm culture plate) |
Mean wind speed | 0.3-0.6m/s (adjustable) |
Noise | ≤65dB |
Power Supply | AC,單項220V/50Hz |
Illuminance | ≥300LX |
Vibration half peak | ≤ 3μm(X.Y.Z) |
Maximum power consumption | 400W |
Weight | <150Kg |
Workspace size | 870×600×520mm |
Overall dimension of device | 1010×660×1635mm |
Specification and quantity of high efficiency filter | 820×530×50×① |
Specification and quantity of fluorescent lamp / UV lamp | 20w × ①/ 20w ×① |
Applicable number | Single person single side / 1 person operation |
