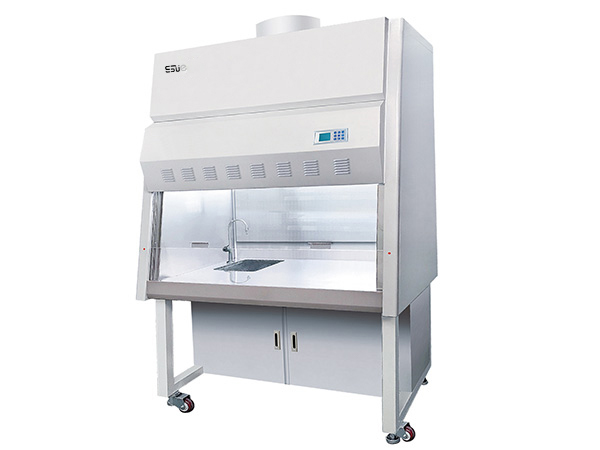

roduct features:
◆ The function of the fume hood is to exhaust the harmful gases generated in the experiment and protect the health and safety of the
laboratory personnel.
◆ Structural combination: The whole steel combination is adopted, and the independent water, electricity and pipeline system
containment cabinet is designed.
◆ Outer box: stamped and formed by 1.2mm thick steel plate, the surface is treated with acid and alkali resistant EPOXY powder paint
◆ The countertop and optional sink 304 are all stainless steel, or physical and chemical board, acid and alkali resistant and corrosion
resistant.
◆ Lighting: Super bright fluorescent lamp.
◆ Lighting: Super bright fluorescent lamp.
◆ Deflector: The deflector allows the harmful gases in different height spaces to be discharged from different sections; the air in the
fume hood is discharged at a speed of 0.5m / s on the operating surface to ensure that no residual gas exists.
◆ Window: The glass window can be moved up and down, and staying in any position can provide a safer and more comfortable
experimental space for experimenters.
◆ Cabinet door opening height: 620mm.
Model and technical parameters:
Index / Model | TFG-1800 type fume hood |
Exhaust wind speed | 0.2m-0.6m / s (adjustable) |
Inlet water pressure | >0.5Pax |
Power | ≤350W |
Power configuration | AC single phase 220V 50Hz |
Weight | 160k |
Inner diameter size L*D*H | 1660×700×700 ㎜ |
Diameter size L*D*H | 1800×750×2050 ㎜ |
Exhaust pipe caliber | φ250mm |
Wind direction | Top out |
