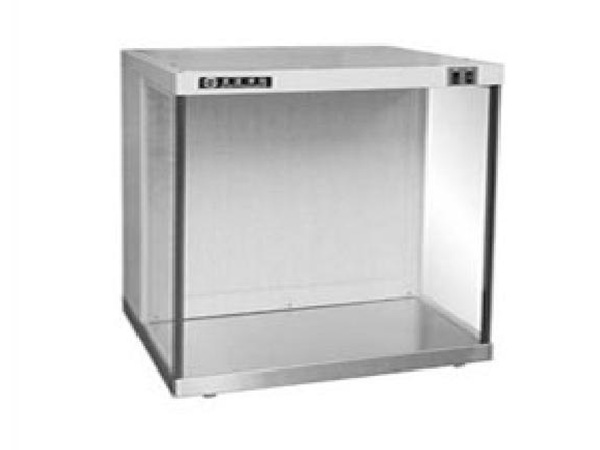

◆ This is a kind of small worktable, specially designed for convenient placement on the table top of the experimental worktable. It is
applicable to all scientific research and experimental operations suitable for clean environment.
◆ 1. The box is made of 1.2mm thick cold-rolled steel plate, and the table top is made of stainless steel;
◆ 2. Compact and practical, easy to handle;
◆ 3. Open uniform horizontal flow (open type, without glass door);
◆ 4. Adopt adjustable air volume fan system, touch type switch and double speed to adjust the voltage, so as to ensure that the wind
speed in the working area is always in an ideal state;
Model and technical parameters:
Index / model | HD-1300 Horizontal flow |
Cleanliness grade | Grade 100 @ ≥ 0.5 μ m (209E, US Federal) |
Settling bacteria concentration | ≤ 0.5 / dish / hour (φ 90mm culture plate) |
Mean wind speed | 0.3～0.6m/s |
Noise | ≤65dB（A） |
Power Supply | AC, single 220V / 50Hz |
Illuminance | ≥300LX |
Vibration half peak | ≤ 3μm（X.Y.Z） |
Maximum power consumption | 400W |
Weight | 60Kg |
Workspace size | 1250×530×620mm |
Overall dimension of device | 1300×650×900mm |
Specification and quantity of high efficiency filter | 1010×500×50×① |
Specification and quantity of fluorescent lamp / UV lamp | 20w ×①/20w ×① |
Applicable number | Two person single side |
company can customize according to the specific needs of customers
